| Ask Lasest Price | |
| Brand Name : | OEM |
| Model Number : | Furniture linear actuator |
| Certification : | CE |
Item: Furniture Linear actuator
Housing material: Aluminum
Motor Type: Permanent magnet brushed DC motor
Input voltage: 12V/24V
Drive system type: Worm Gear
Nut material: POM
Rated load: 6000N
Max stroke: 600mm
Feedback signal: Optional (HALL SENSOR)
Duty cycle: 10%
Limit switches: Built-in
Newton (N) to Pound (lbs)
| Newton | 6000N | 4000N | 3000N | 2000N | 1500N | 800N |
| LBS | 1350 | 881 | 661 | 440 | 330 | 176 |
Load & Speed of Linear Actuator
| Furniture Linear Actuator Series | Load±10％(N) | Speed±2(mm/S) | ||||
| Load | 6,000 | 4,000 | 3,000 | 2,000 | 1,500 | 800 |
| Speed | 4 | 6 | 8 | 11 | 16 | 25 |
Stroke & Retracted length of Linear Actuator
| Furniture Linear Actuator Series | Stroke ±2(mm) | Mounting dimensions±3(mm) | Without Feedback | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 225 | 275 | 325 | 375 | 425 | 475 | 525 | 600 | 650 |
| Furniture Linear Actuator Series | Stroke ±2(mm) | Mounting dimensions±3(mm) | With Hall sensors | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 225 | 275 | 325 | 375 | 425 | 475 | 525 | 600 | 650 |
Drawing of Linear Actuator
Wiring Of DC MOTOR
Confirm the specifications of Linear Actuator you need:
When determining a design for your linear actuator, there are countless factors to take into consideration.
One of the first things you'll need to determine is the viability of standard linear actuator designs for your project.
If standard can't be made to work efficiently, it's time to start looking at custom options.
· Size
· Input voltage
· Load speed
· Load capacity in lbs/N
· Environment
· IP rate
Customer Service
Returns, Exchanges, Payments and Order Status
Our Customer Service team is ready to help. We will respond to your email within one business day.
For a quicker response give us a call.

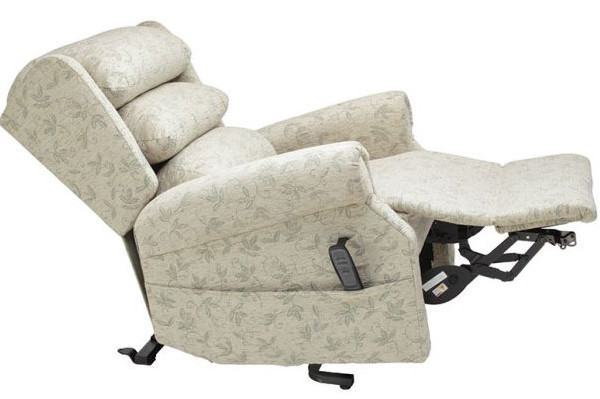

Application of Linear Actuator
Want to know more info about linear actuators?
Please Contact Us or phone / Wechat / whatsApp: +86 18762658863
lisahao1992@163.com
We look forward to hearing from you.
